SHELL AND TUBE LNG VAPORIZERS (STV)

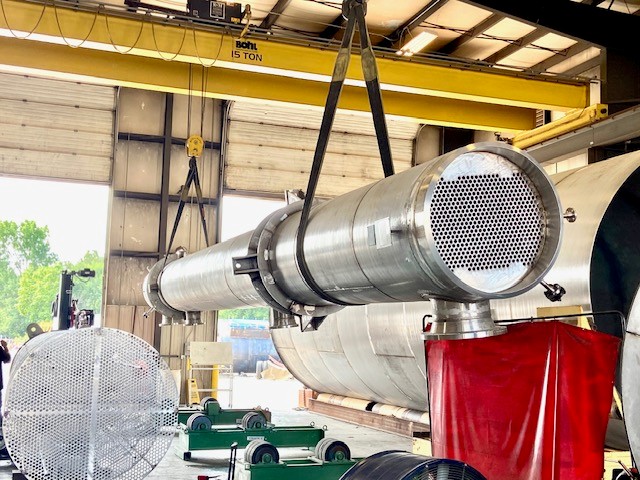

LNG Vaporizer
66″ OD x 54′ Tube Length – 160,000 lbs

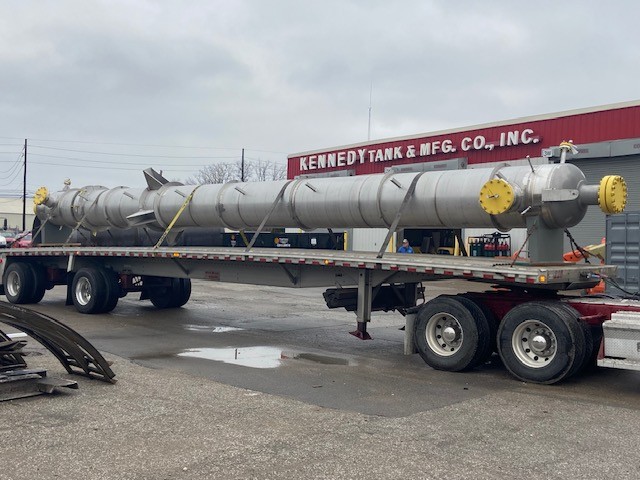

LNG Vaporizer
44″ OD x 40′ Tube Length – 51,000 lbs
LNG Vaporizers – Chicago Power & Process, Inc (LNGV – CPP) is an internationally recognized supplier of Shell & Tube LNG Vaporizers (STV) for the Liquefied Natural Gas (LNG) Industry. With an extensive list of national and international customers with projects dating back to 1974, LNGV – CPP can proudly provide world-class Shell & Tube LNG Vaporizers backed by experience.
LNGV – CPP’s proprietary heat transfer technology has proven successful in 250+ LNG vaporizers at 40+ locations.
Request A Quote
Shell & Tube LNG Vaporizers (STV)
- First LNG Vaporizer fabricated in 1974
- 250+ LNG Vaporizers / 40+ Sites
- All STVs met or exceeded performance requirements
- Complete vaporization and superheat in single unit
Ease of Operation
- Heating media on first and off last
- Minimal monitoring of temperatures and flow rates
- Minimal throttling of flows
Applications
- Peak shaving LNG Plants
- Baseload LNG regasification terminals
- Power Plant – Turbine inlet air cooling
Mechanical Design Features
- Modified TEMA type NEN or NJN design
- No removable bonnets or channel covers
- ASME Code, Section VIII, Division I
- TEMA R
- Proprietary design features for LNG distribution and thermal performance.
- Third Party review by the American Bureau of Shipping (ABS), Bureau Veritas (BV), Det Norske Veritas (DNV), and others.
Versatility
- Land based or offshore
- Vertical or Horizontal
- Multiple heating medium options
- Ethylene Glycol / H2O, Propylene Glycol / H2O, Methanol / Water, Fresh Water, Seawater, Others
Land-based LNG Vaporizers
Land-based LNG Vaporizers
Offshore LNG Vaporizers
Offshore LNG Vaporizers
